We are Pingyuan Best Machine Tools Co., Ltd. , the processional cnc tools manufacturer from China Since the company founded in 2014. Our product lines has covered more than 100 series, mainly include: CNC machine tool holders, collet chucks, collet sets, Aggregate heads, tool holder claw clamp Forks, tool holder locking devices, tools vise and spanners, dust chip extraction nut, tool holder pull stud and nuts, tool sensors, ATC tools library, boring head series etc.We also accepted customers' customized CNC Router parts and packages according to your drawing and instruction. All the parts are in stock largely.
Product description
|
Brand Name |
BESTMYT |
|
Model Number |

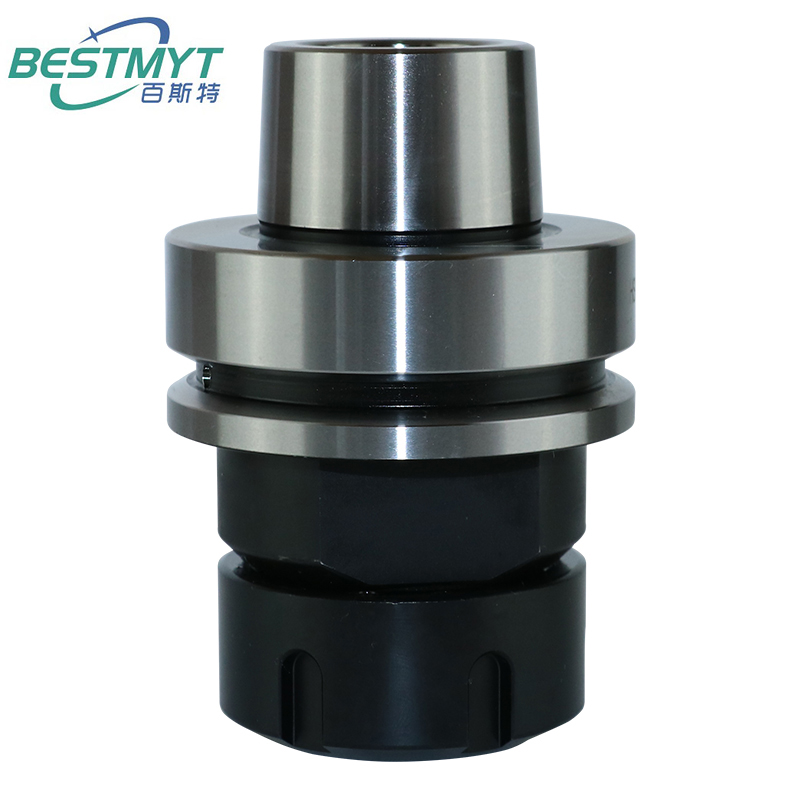

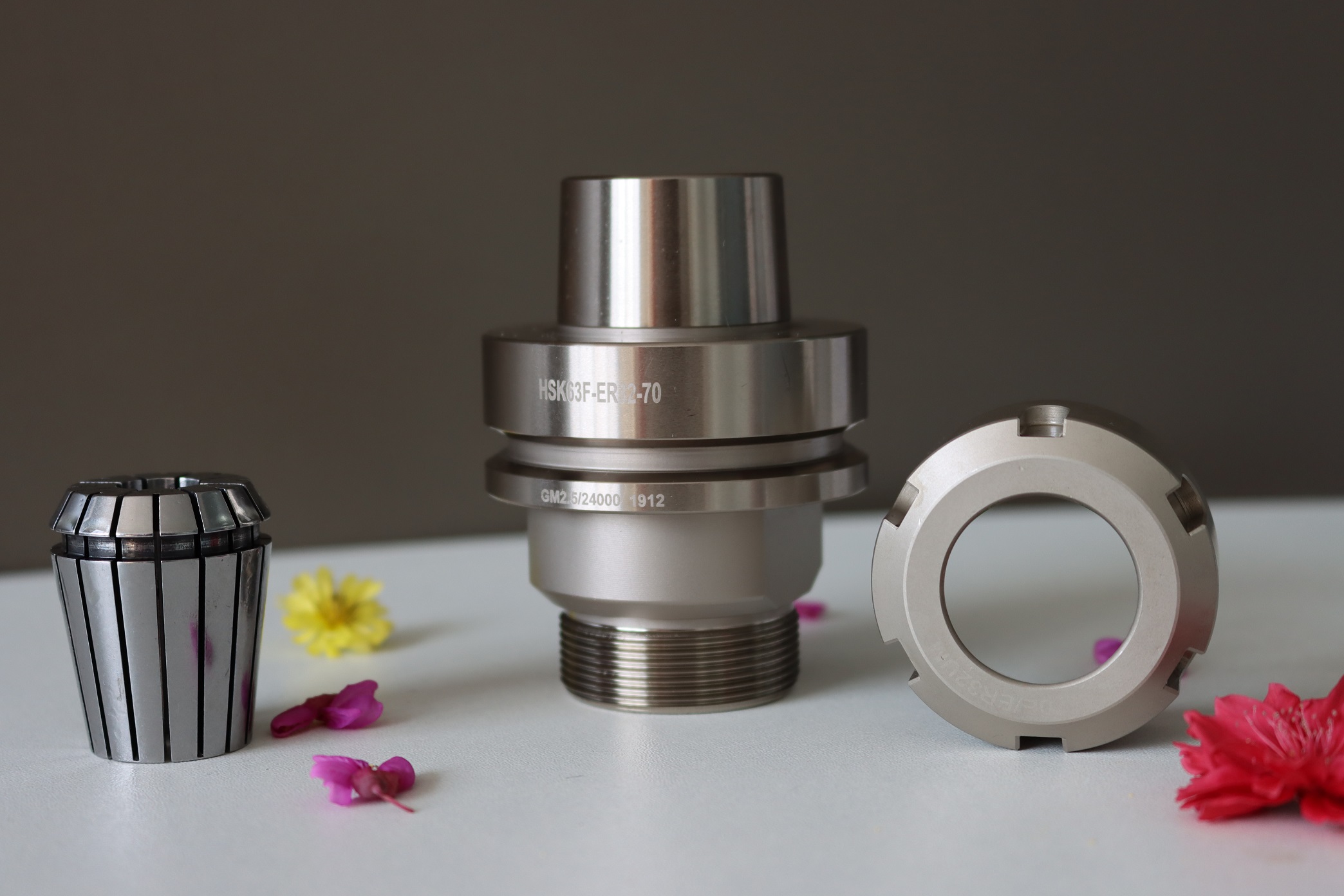

HSK63F-ER32-70L Coated Tool Holder |
|
Color |
Bright Silver White with Nickel coated process |
|
Materials |
20 CrMnTi Alloyed case hardened steel,black-finished and precisely grind. |
|
Taper tolerance |
<AT3 |
|
Precision |
0.002mm |
|
Surface Roughness |
>0.8mm |
|
Roundness |
<0.8μm |
|
Carbonizing depth |
>0.8mm |
|
Hardness |
HRC58-62 |
|
Dynamic Balance |
G 2.5 24000rpm |
|
Quality control |
100% inspection |
|
Warranty |
3 years |
|
Service |
Customized OEM / ODM |
|
Usage |
Suitable for working on drill, lathe,boring machine,milling machine and CNC machine center etc. |
|
Applicable cutters |
vertical disc cutter, sets of type of milling cutter, face milling cutter, milling cutter, three face milling cutter, Mechanical spindle and cutting tools and other accessories. |
Direction for Use
1. A collet and replacement of cutting tools, screw nut and body must be clean, and add grease, or it will damage the thread.
2.The device must be placed when the collet nut,and then into the tool,then the lock body.
3.The placement tool collet hole,clamping collet must exceed effective length,to avoid improper locking damage.
